MUC.L.al – light and stylish through the city

Equipped with a stylish design and variability, this concept speaks for itself. Messingschlager offers two frame platforms: diamond and wave. Our light e-bike can be equipped with various Bafang motors and thus has a maximum of 30, 42 or 45 Nm. Torque. The fully integrated 360 Wh battery with 21700 cell technology is installed seamlessly in the slim down tube.

Thanks to this integration and the successful design, it is almost impossible to tell from our light model that it is a real e-bike with a possible weight of less than 15 kg. For more flexibility, we have equipped this frame with an open dropout to keep all options in terms of chain or belt drive open.

Categorization:

Our light e-bike is driven by a compact and powerful Bafang hub motor, which blends inconspicuously into the slim appearance.

The DP CP240 Remote display is also from Bafang and is easy to use.

The on / off button has been integrated inconspicuously in the bottom bracket area, creating a clean design.

Key Facts

Driven by compact Bafang hub motors, our light e-bike has torques of 30, 42 or 45 Nm.

Maximum variability: thanks to the frame lock and construction, chain and belt drives can be installed.

The battery with the latest 21700 cell technology, which has a capacity of 360 Wh, is fully integrated in the slim down tube.

Stylish and smart, that‘s exactly how we design our light e-bike. In addition, the name suggests that low weights of less than 15 kg are possible.

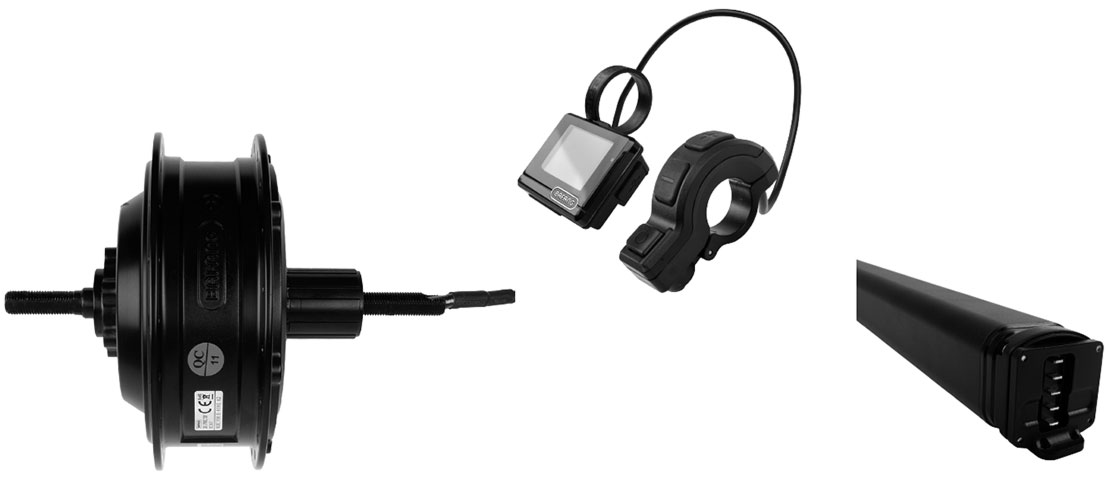

System

The urban version of our light e-bike can be equipped with three different rear engines, which have a maximum torque of 45 Nm.

The internally installed, almost invisible, slim battery supplies the system with sufficient energy the battery is equipped with the latest 21700 cell technology.

As for display, we rely on the easy-to-use and clearly designed DP C240 from Bafang, which is operated with a remote unit.

Geometry

Urban / Gravel

URBAN / GRAVEL	S	M	L	XL
Seat tube length	460 mm	500 mm	540 mm	580 mm
Top tube length horizontal	560 mm	570 mm	580 mm	590 mm
Steerer tube	150 mm	160 mm	170 mm	180 mm
Chain stay	445 mm	445 mm	445 mm	445 mm
Steerer tube angle	69°	69°	69°	69°
Seat tube angle	73°	73°	73°	73°
Wheelbase	1065 mm	1075 mm	1086 mm	1097 mm
Reach	379 mm	386 mm	393 mm	402 mm
Stack	592 mm	601 mm	611 mm	620 mm
Head set (S.H.I.S.)	ZS44/28.6 ZS44/30	ZS44/28.6 ZS44/30	ZS44/28.6 ZS44/30	ZS44/28.6 ZS44/30
Fork installation height	430 mm	430 mm	430 mm	430 mm
Seat post Ø	31.6 mm	31.6 mm	31.6 mm	31.6 mm

Wave

WAVE	S	M	L
Seat tube length	460 mm	520 mm	580 mm
Top tube length horizontal	565 mm	596 mm	627 mm
Steerer tube	165 mm	185 mm	205 mm
Chain stay	445 mm	445 mm	445 mm
Steerer tube angle	69°	69°	69°
Seat tube angle	73°	73°	73°
Wheelbase	1071 mm	1103 mm	1135 mm
Reach	380 mm	405 mm	430 mm
Stack	606 mm	625 mm	644 mm
Head set (S.H.I.S.)	ZS44/28.6 ZS44/30	ZS44/28.6 ZS44/30	ZS44/28.6 ZS44/30
Fork installation height	430 mm	430 mm	430 mm
Seat post Ø	31.6 mm	31.6 mm	31.6 mm
