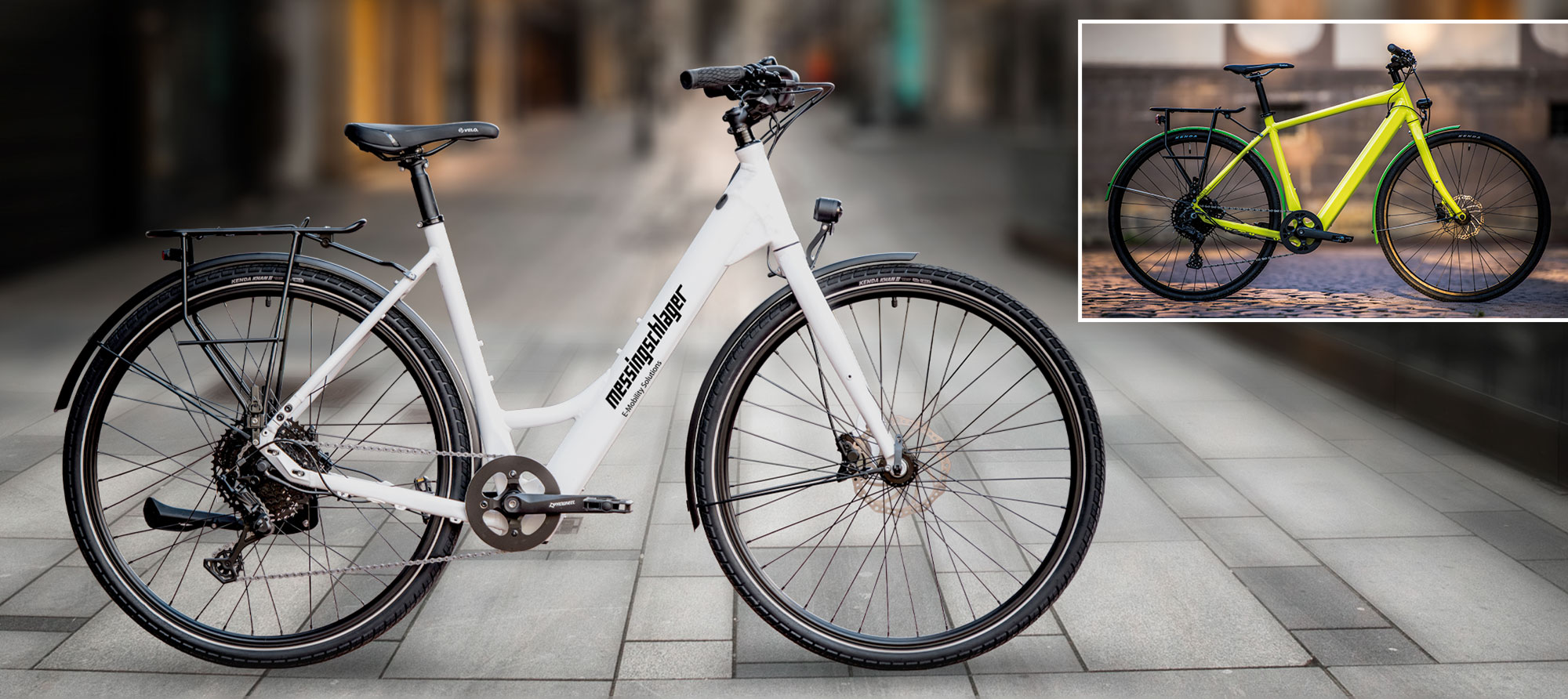

MUC.L.al – light and stylish through the city

Equipped with a stylish design and variability, this concept speaks for itself. Messingschlager offers two frame platforms: diamond and wave. Our light e-bike can be equipped with various Bafang motors and thus has a maximum of 30, 42 or 45 Nm. Torque. The fully integrated 360 Wh battery with 21700 cell technology is installed seamlessly in the slim down tube.

Thanks to this integration and the successful design, it is almost impossible to tell from our light model that it is a real e-bike with a possible weight of less than 15 kg. For more fl exibility, we have equipped this frame with an open dropout to keep all options in terms of chain or belt drive open.

Categorization:

Bike-Kategorie 2 Icon
Bike Detail 1

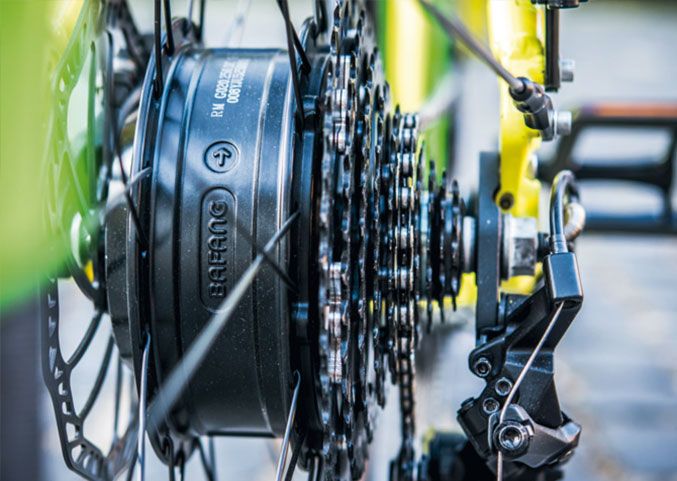

Our light e-bike is driven by a compact and powerful Bafang hub motor, which blends inconspicuously into the slim appearance.

Bike Detail 2

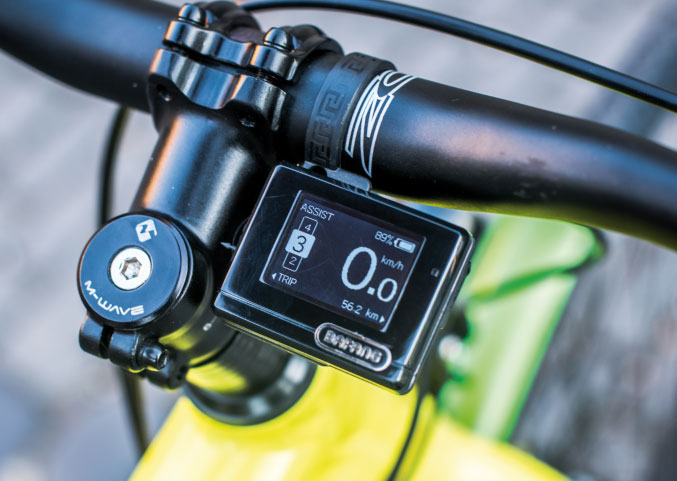

The DP CP240 Remote display is also from Bafang and is easy to use.

Bike Detail 3

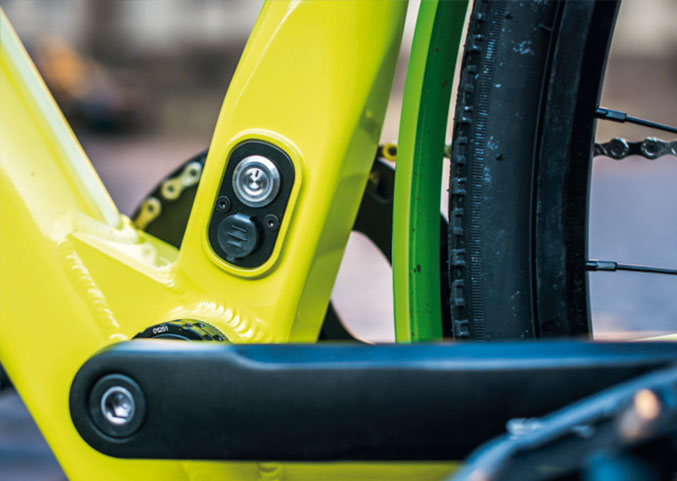

The on / off button has been integrated inconspicuously in the bottom bracket area, creating a clean design.


Key Facts

Key Features 1 Key Features 1

Driven by compact Bafang hub motors, our light e-bike has torques of 30, 42 or 45 Nm.

Key Features 2 Key Features 2

Maximum variability: thanks to the frame lock and construction, chain and belt drives can be installed.

Key Features 3 Key Features 3

The battery with the latest 21700 cell technology, which has a capacity of 360 Wh, is fully integrated in the slim down tube.

Key Features 4 Key Features 4

Stylish and smart, that‘s exactly how we design our light e-bike. In addition, the name suggests the low weight of approx. 15 kg.


System

Systemkomponenten

The urban version of our light e-bike can be equipped with three different rear engines, which have a maximum torque of 45 Nm.

The internally installed, almost invisible, slim battery supplies the system with sufficient energy the battery is equipped with the latest 21700 cell technology.

As for display, we rely on the easy-to-use and clearly designed DP C240 from Bafang, which is operated with a remote unit.


Geometry

Geometrie Urban / Gravel

Urban / Gravel

URBAN / GRAVEL S M L XL
Seat tube length 460 mm 500 mm 540 mm 580 mm
Top tube length horizontal 560 mm 570 mm 580 mm 590 mm
Steerer tube 150 mm 160 mm 170 mm 180 mm
Chain stay 445 mm 445 mm 445 mm 445 mm
Steerer tube angle 69° 69° 69° 69°
Seat tube angle 73° 73° 73° 73°
Wheelbase 1065 mm 1075 mm 1086 mm 1097 mm
Reach 379 mm 386 mm 393 mm 402 mm
Stack 592 mm 601 mm 611 mm 620 mm
Head set (S.H.I.S.) ZS44/28.6
ZS44/30
ZS44/28.6
ZS44/30
ZS44/28.6
ZS44/30
ZS44/28.6
ZS44/30
Fork installation height 430 mm 430 mm 430 mm 430 mm
Seat post Ø 31.6 mm 31.6 mm 31.6 mm 31.6 mm

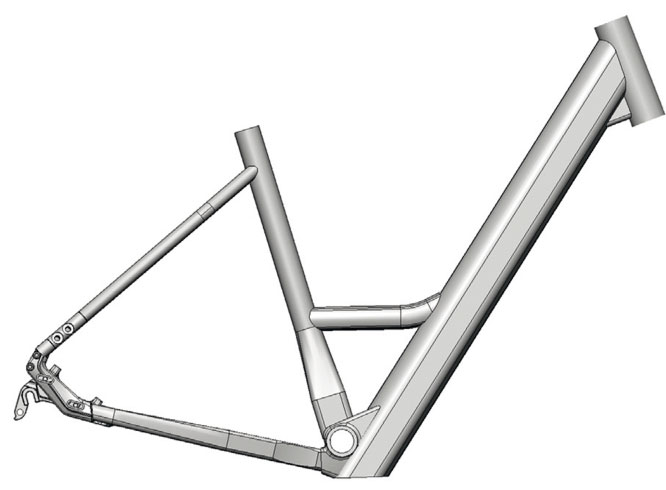

Geometrie Wave

Wave

WAVE S M L
Seat tube length 460 mm 520 mm 580 mm
Top tube length horizontal 565 mm 596 mm 627 mm
Steerer tube 165 mm 185 mm 205 mm
Chain stay 445 mm 445 mm 445 mm
Steerer tube angle 69° 69° 69°
Seat tube angle 73° 73° 73°
Wheelbase 1071 mm 1103 mm 1135 mm
Reach 380 mm 405 mm 430 mm
Stack 606 mm 625 mm 644 mm
Head set (S.H.I.S.) ZS44/28.6
ZS44/30
ZS44/28.6
ZS44/30
ZS44/28.6
ZS44/30
Fork installation height 430 mm 430 mm 430 mm
Seat post Ø 31.6 mm 31.6 mm 31.6 mm
