MUC.T.al – Go for the next discovery tour with powerful 90 Nm!

“The journey is the goal” - hardly any other model in our e-mobility program applies this motto as much as it does with MUC-T.al. It is quite possible that the rider would like to cover the route again when he or she has arrived. Uphill? None noticed. Headwind? Can't be at all. Heavy baggage? Could have been more. Arrive relaxed! At any time. Our recipe for success: an aluminum frame suitable for touring, which impresses with its geometry suitable for long journeys and is compatible with all Brose Mag generation 2 drives. Its quiet and high-torque characteristics - whether Drive T with 70 Nm or Drive S with 90 Nm of torque - make the Brose drive the perfect, unobtrusive but powerful partner for long trekking tours.

We also offer batteries with a capacity of up to 630 Wh. Maximum variability is the motto for the drive. Due to the open construction of the frame triangle, both belt and chains drives can be installed. The modern Brose all-round display in smartwatch design offers the discerning rider good readability and a large number of useful functionalities and rounds off the overall drive concept.

Categorization:

The geometry, construction and details of the new trekking frame provide the best prerequisites for touring specifications.

The new Allround display from Brose impresses with its functionality and the clean look of a smart watch.

Flexibility with the motor: this model can optionally be equipped with Brose Drive C, T or S - with a belt or chain drive.

Key Facts

Driven by Brose Drive C, T or S motors, the customer has the option of 50, 70 or 90 Nm max. torque.

Maximum variability: thanks to the frame lock and construction, chain, hub and belt drives can be installed.

The battery with 522 or 630 Wh is fully integrated into the frame and enables long ranges or low price points.

Men's or trapeze frames with trekking-specific details and geometry for long-distance comfort.

System

Brose Allround Display | Brose Drive C/T or S | Phylion battery with 522 or 630 Wh

Cover long distances with the best possible comfort and reliable, quiet pedal assistance - this is ensured by our new frame concept and the powerful Brose Drive C, S or T drives with 50, 70 or 90 Nm maximum torque. This makes riding uphill an easy task.

For the cockpit, we opted for the Brose all-round display with the look of a smartwatch and elegant integration. For trekking applications, we recommend the 630 Wh battery, ideally suited for a long weekend tour or the stages of bike travelling.

Geometry

Men

TREKKING MEN	S	M	L	XL
Seat tube length	450 mm	500 mm	550 mm	600 mm
Top tube length horizontal	608 mm	615 mm	623 mm	628 mm
Steerer tube	170 mm	180 mm	190 mm	190 mm
Chain stay	475 mm	475 mm	475 mm	475 mm
Steerer tube angle	71°	71°	71°	71°
Seat tube angle	73°	73°	73°	73°
Wheelbase	1122 mm	1130 mm	1139 mm	1144 mm
Reach	408 mm	413 mm	418 mm	423 mm
Stack	653 mm	662 mm	671 mm	671 mm
Head set (S.H.I.S.)	ZS44/28.6 ZS56/40	ZS44/28.6 ZS56/40	ZS44/28.6 ZS56/40	ZS44/28.6 ZS56/40
Fork installation height	460 mm	460 mm	460 mm	460 mm
Seat post Ø	31.6 mm	31.6 mm	31.6 mm	31.6 mm

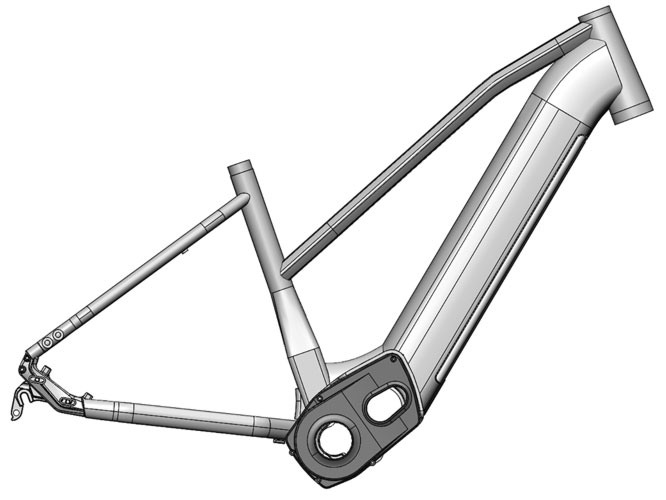

Trapez

TREKKING TRAPEZ	S	M	L
Seat tube length	450 mm	500 mm	550 mm
Top tube length horizontal	599 mm	609 mm	620 mm
Steerer tube	170 mm	180 mm	190 mm
Chain stay	475 mm	475 mm	475 mm
Steerer tube angle	71°	71°	71°
Seat tube angle	73°	73°	73°
Wheelbase	1104 mm	1124 mm	1136 mm
Reach	400 mm	407 mm	415 mm
Stack	653 mm	661 mm	671 mm
Head set (S.H.I.S.)	ZS44/28.6 ZS56/40	ZS44/28.6 ZS56/40	ZS44/28.6 ZS56/40
Fork installation height	460 mm	460 mm	460 mm
Seat post Ø	31.6 mm	31.6 mm	31.6 mm
