Models with Down Tube Battery

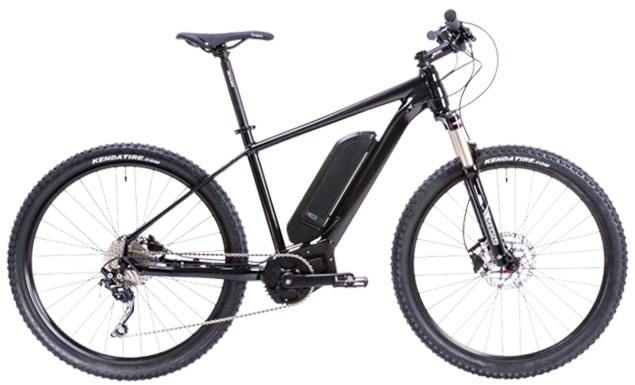

DOWN TUBE BATTERY MODEL MTB

MODEL MTB

The classically drawn MTB frame is optically and completely based on simplicity and clear lines. Technology and design merge with each other even though the battery sits on the down tube. Thanks to an optical extension, it forms a harmonious unit with the slightly slanted mid-drive motor.

  • For use of forks with 100 mm travel
    (mounting height: 488 mm)
  • Installation dimension 135 mm, quick release
  • Threads for mudguard and rear carrier
  • Integrated stand boss
  • Tire clearance: 27.5 x 2.35, 650B (60-584)


DOWN TUBE BATTERY MODEL MTB DETAIL 1
DOWN TUBE BATTERY MODEL MTB DETAIL 2
DOWN TUBE BATTERY MODEL MTB DETAIL 3

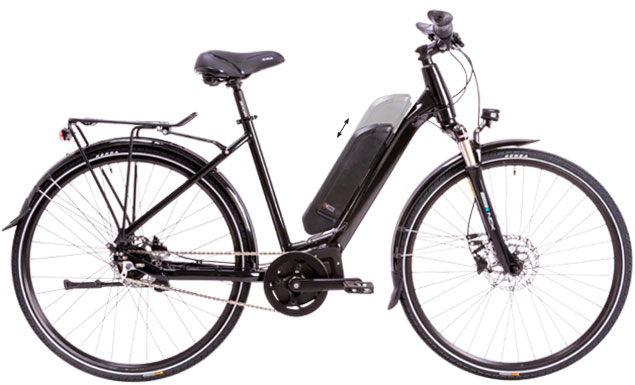

DOWN TUBE BATTERY MODEL CITY-WAVE

MODEL CITY-WAVE

The City-Wave frame is perfectly and elegantly curved and offers a lot of comfort. Safe mounting and dismounting is provided by the comfortable, low step-through height of 43.5 cm. Thanks to a second, higher mounting position for the battery, the access is exceptionally open and wide.

  • For use of forks with 65 mm travel
    (mounting height: 462 mm)
  • Exchangeable and moveable drop-outs
  • For derailleur systems or gear hubs
  • Fixing points for wider frame locks with spacing of 90 mm
  • Integrated, multifunctional stand boss
  • Tire clearance: 28 x 2.35 (60-622)
  • Two different mounting positions for battery available
DOWN TUBE BATTERY MODEL CITY-WAVE DETAIL 1
DOWN TUBE BATTERY MODEL CITY-WAVE DETAIL 2
DOWN TUBE BATTERY MODEL CITY-WAVE DETAIL 3
DOWN TUBE BATTERY MODEL TREKKING W

MODEL TREKKING W

The so-called mixte frame shape, is a frame shape that is suitable for both women and men. It convinces with its sporty, chic and comfortable look. It will lead you effortlessly over the country and through the city. The trekking frame designed for chain and hub gearing underlines its sportiness with its lowered top tube. The extremely stiff frame is extremely sturdy and reliable, even when you're away from the road.

  • For use of forks with 65 mm travel
    (mounting height: 462 mm)
  • Exchangeable and moveable drop-outs
  • For derailleur systems or gear hubs
  • Fixing points for wider frame locks
  • Integrated, multifunctional stand boss
  • Tire clearance: 28 x 2.35 (60-622)
  • Mounting of bottle cage possible
DOWN TUBE BATTERY MODEL TREKKING W DETAIL 1
DOWN TUBE BATTERY MODEL TREKKING W DETAIL 2
DOWN TUBE BATTERY MODEL TREKKING W DETAIL 3
DOWN TUBE BATTERY MODEL TREKKING M

MODEL TREKKING M

The trekking frame for men offers everything a modern touring e-bike needs. Sporty look and that despite the large-volume aluminum construction of the frame. The massive head tube also adds to the desired high stiffness values. This ensures superior driving characteristics, even at high speeds.


  • For use of forks with 65 mm travel
    (mounting height: 462 mm)
  • Exchangeable and moveable drop-outs
  • For derailleur systems or gear hubs
  • Fixing points for wider frame locks
  • Integrated, multifunctional stand boss
  • Tire clearance: 28 x 2.35 (60-622)
  • Mounting of bottle cage possible
DOWN TUBE BATTERY MODEL TREKKING M DETAIL 1
DOWN TUBE BATTERY MODEL TREKKING M DETAIL 2
DOWN TUBE BATTERY MODEL TREKKING M DETAIL 3
